Process information
| Key Data Set Information | |
| Location | RER |
| Geographical representativeness description | The results of this EPD are representative for Europe. |
| Reference year | 2024 |
| Name |
|
| Use advice for data set | The AMTRON® Professional+ charging stations are electric vehicles charging stations (EVSE) which can be mounted on walls or columns (wallboxes). Our product series consist several numbers of single wallboxes with one charging point and Twincharge wallboxes with two charging points. The AMTRON® Professional+ product series deliver several features for the user and the operator of charging infrastructure, such as • Equipped charging point reg. IEC 62196 (socket outlet with/without shutter or charging cable) • RFID card system for access protection • Dynamic, phase-exact load management for up to 100 charge points • Optionally with integrated mobile communication modem for the backend link • Optional: plug & charge (PnC) function • Compatible with OCPP 1.5s and OCPP 1.6s+j • Locally networkable via LAN (RJ45) • Connection of external power meters for overload protection • Integrated RCCBs and MCBs protection devices • Multifunction button (for resetting after a malfunction etc.) • MID-certified power meter Building or plant components that are not relevant for product manufacture are excluded by means of estimates (e.g. electricity consumption for IT, building heating). In accordance with the PCR, applied infrastructure was deleted for upstream processes. Therefore, all input-datasets modelled in A1, A3 and A5 were analysed regarding infrastructure in the first previous level of the upstream chain. |
| Technical purpose of product or process | Semi-public charging infrastructure is located on private property but is accessible to the public. Typical examples include customer parking lots of shops or hotels. These charging points are intended for specific user groups such as customers or visitors. Public charging infrastructure, on the other hand, is located on public property and is accessible to everyone. Examples include charging points at roadsides or in public parking garages. |
| Classification |
Class name
:
Hierarchy level
|
| General comment on data set | This is a cradle to gate with options EPD, all modules except module B1 are declared. The owner of this EPD shall be liable for the underlying information and evidence. The program operator Kiwa-Ecobility Experts shall not be liable with respect to manufacturer data, life cycle assessment data and evidence. |
| Copyright | Yes |
| Owner of data set | |
| Content declaration | |
| Quantitative reference | |
| Reference flow(s) | |
| Biogenic carbon content | |
| Time representativeness | |
| Data set valid until | 2030 |
| Time representativeness description | Primary data including all raw materials, packaging materials, energy consumption and ancillary materials was comprehensively collected for the reference year from 2024-01-01 to 2024-12-31. |
| Technological representativeness | |
| Technology description including background system | Our production process includes following essential production steps: • Plastic coating of components and housings • Fabrication of contact materials • Assembly of parts and assembly groups (containing self-produced and purchased parts) • Assembly of the product including mechanical assembling, electrical wiring and software installation and configuration (containing self-produced and purchased parts) • End-Of-line testing of the product • Packing of the produced product |

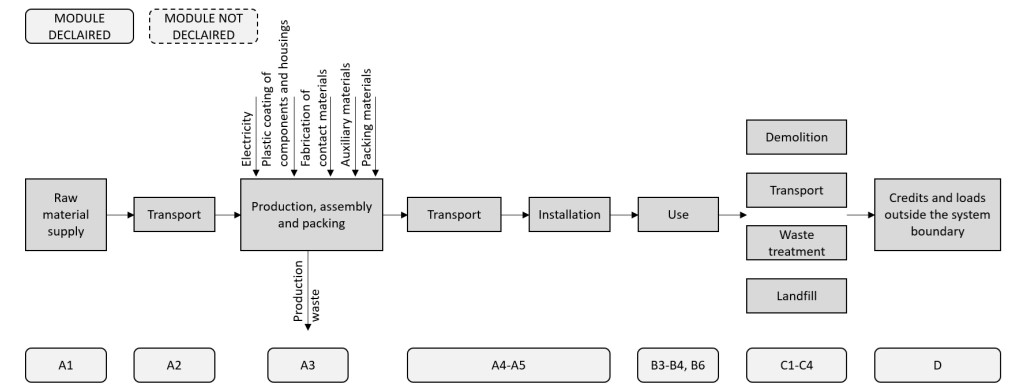

| Flow diagram(s) or picture(s) | |
Modelling and validation
Administrative information
Environmental indicators
